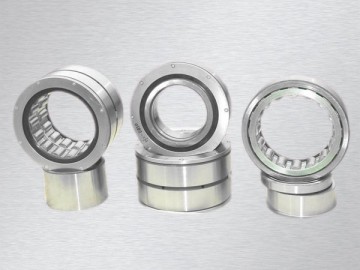

| 背襯軸承 | |
|
|
|
| 外形尺寸 | 軸承代號 | 額定載荷(KN) | 最大徑向載荷(KN) | 重量(Kg) | 圖號 | |||||||||||||||
| 軸承 | 滾輪 | |||||||||||||||||||
| d | D | B | C | H | d1 | D1 | E | F | rmin | K | N | 動態Cr |
靜 態Cor |
動態Cw |
靜 態Cow |
動 態 Fr |
靜態For | |||
| 50 | 110 | 56 | 55 | 30 | 65 | 89.5 | 80.6 | 60.6 | 1 | 4 | 3 |
BNPF102256 /2RZ |
194 | 309 | 129 | 209 | 96 | 136 | 2.9 | 1.1 |
| 55 | 120 | 52 | 51.2 | 32.5 | 70 | 98 | 85.3 | 63.3 | 1 | 4 | 3 | BNUP112452 | 155 | 219 | 121 | 170 | 104 | 149 | 3.4 | 2 |
| 120 | 52 | 51.2 | 32.5 | 70 | 84.2 | 89.1 | 65.1 | 1 | 3 | 3 | BNUPA112452 | 171 | 237 | 125 | 170 | 86 | 122 | 3.5 | 3 | |
| 120 | 52.2 | 52 | 32.5 | 70 | 77 | 65 | 1 | 1.6 | 2 | BKBF112452 | 168 | 372 | 130 | 262 | 166 | 235 | 3.5 | 4 | ||
| 120 | 60 | 60 | 32.5 | 84 | 68 | 1 | 4.5 | 4 |
BNNB112460 /BH1 |
208 | 356 | 162 | 255 | 159 | 227 | 3.8 | 6 | |||
| 120 | 64 | 63.2 | 32.5 | 70 | 98 | 85.3 | 63.3 | 2 | 4 | 3 | BNUP112464 | 206 | 317 | 151 | 227 | 130 | 185 | 4.2 | 2 | |
| 60 | 165 | 74 | 74 | 32.5 | 108 | 76 | 1 | 5 | 4 | BNNB123374 | 357 | 530 | 280 | 417 | 306 | 437 | 10 | 6 | ||
| 65 | 165 | 70 | 70 | 50 | 116.5 | 76.5 | 0.6 | 4 | 6 | BNBA133370 | 361 | 472 | 285 | 382 | 185 | 264 | 9.5 | 7 | ||
| 70 | 160 | 75 | 74.2 | 45 | 88 | 130 | 116 | 86 | 2 | 5 | 3 | BNUP143275 | 190 | 360 | 136 | 246 | 160 | 230 | 9 | 2 |
| 160 | 90 | 89.2 | 45 | 88 | 130 | 116 | 86 | 2 | 5 | 3 |
BNUP143290 /2RZ |
347 | 550 | 262 | 405 | 220 | 320 | 10 | 1 | |
| 160 | 90 | 89.2 | 45 | 88 | 130 | 116 | 86 | 2 | 5 | 3 |
BNPF143290 /2RZ |
425 | 720 | 300 | 485 | 240 | 340 | 10.5 | 1.1 | |
| 160.02 | 90 | 90 | 45 | 108.8 | 82.8 | 1 | 5 | 2×4 |
BNTB143290 /IS |
393 | 695 | 289 | 500 | 330 | 480 | 10 | 8.2 | |||
| 160.02 | 90 | 90 | 45 | 108.8 | 82.8 | 1 | 5 | 2×4 |
BNTF143290 /IS |
453 | 846 | 326 | 580 | 350 | 510 | 10.5 | 8.3 | |||
| 160.02 | 90 | 90 | 45 | 108.8 | 82.8 | 1 | 5 | 2×4 | BNTF143290 | 453 | 846 | 326 | 580 | 350 | 510 | 10.5 | 8.1 | |||
| 90 | 220 | 94 | 94 | 65 | 160 | 108 | 1 | 7 | 6 | BNBA184494 | 690 | 1000 | 513 | 740 | 310 | 440 | 21.5 | 7 | ||
| 220 | 94 | 94 | 65 | 160 | 108 | 1 | 7 | 6 | BNAF184494 | 762 | 1140 | 560 | 850 | 325 | 465 | 21 | 7.1 | |||
| 220 | 120 | 120 | 65 | 130 | 150 | 159 | 121 | 1 | 5 | 2×3 | BNTBP1844120 | 625 | 1110 | 471 | 755 | 390 | 555 | 26.5 | 9 | |
| 220 | 120 | 120 | 65 | 130 | 150 | 159 | 121 | 1 | 5 | 2×3 | BNTPF1844120 | 732 | 1360 | 479 | 890 | 410 | 590 | 27 | 9.1 | |
| 220.02 | 120 | 120 | 65 | 156.3 | 120.3 | 1 | 5 | 2×3 | BNTF1844120 | 810 | 1600 | 563 | 1050 | 510 | 720 | 27.5 | 8.3 | |||
| 100 | 225 | 96 | 95.2 | 62.5 | 124 | 183 | 163.5 | 119.5 | 2 | 6 | 6 | BNUP204596 | 543 | 830 | 413 | 525 | 350 | 500 | 22.5 | 2 |
| 225 | 120 | 119 | 62.5 | 124 | 183 | 163.5 | 119.5 | 2 | 6 | 6 |
BNUP2045120 /2RZ |
672 | 1090 | 505 | 810 | 370 | 520 | 28 | 1 | |
| 225 | 120 | 119 | 62.5 | 124 | 183 | 163.5 | 119.5 | 2 | 6 | 6 |
BNPF2045120 /2RZ |
795 | 1370 | 580 | 960 | 390 | 550 | 28 | 1.1 | |
| 225 | 120 | 119 | 62.5 | 124 | 183 | 163.5 | 119.5 | 2 | 6 | 6 |
BNUP2045120 /BH1 |
672 | 1090 | 505 | 810 | 370 | 520 | 28 | 2 | |
| 225 | 120 | 119 | 62.5 | 124 | 183 | 163.5 | 119.5 | 2 | 6 | 6 |
BNPF2045120 /BH1 |
795 | 1370 | 580 | 960 | 390 | 550 | 28 | 2.1 | |
| 外形尺寸 | 軸承代號 | 額定載荷(KN) | 最大徑向載荷(KN) | 重量(Kg) | 圖號 | |||||||||||||||
| 軸承 | 滾輪 | |||||||||||||||||||
| d | D | B | C | H | d1 | D1 | E | F | rmin | K | N |
動 態 Cr |
靜 態Cor |
動 態 Cw |
靜 態Cow |
動 態 Fr |
靜 態For |
|||
| 225 | 120 | 120 | 62.5 | 165.3 | 120.3 | 1 | 5 | 2×3 |
BNTB2045120 /IS |
740 | 1410 | 540 | 990 | 600 | 860 | 24.5 | 8.2 | |||
| 225 | 120 | 120 | 62.5 | 166.3 | 120.3 | 1 | 5 | 2×3 | BNTF2045120 | 850 | 1700 | 605 | 1150 | 630 | 890 | 28 | 8.3 | |||
| 110 | 260 | 98 | 98 | 75 | 190 | 134 | 1 | 6 | 6 | BNBA225298 | 782 | 1180 | 565 | 840 | 310 | 440 | 31 | 7 | ||
| 260 | 110 | 110 | 75 | 129 | 210 | 184.2 | 132.2 | 1 | 6 | 6 | BNPBF2252110 | 849 | 1370 | 627 | 990 | 470 | 670 | 35 | 5 | |
| 260 | 125 | 125 | 75 | 190 | 134 | 1 | 6 | 6 | BNBA2252125 | 1010 | 1630 | 690 | 1080 | 390 | 560 | 40 | 7 | |||
| 130 | 300.02 | 150 | 149 | 85.01 | 165 | 243 | 219.3 | 151.3 | 4 | 8 | 6 | BNUP2660150 | 1150 | 2150 | 850 | 1560 | 890 | 1280 | 61.5 | 2 |
| 300.02 | 160 | 159.5 | 85.01 | 174 | 213 | 222.5 | 162.5 | 1 | 6 | 6 | BNUPA2660160 | 1250 | 2170 | 870 | 1430 | 610 | 870 | 64.5 | 3 | |
| 300.02 | 160 | 160 | 85.01 | 218.4 | 159.4 | 1 | 6.5 | 2×6 | BNTF2660160 | 1510 | 2770 | 1040 | 1810 | 795 | 1130 | 65.5 | 8.1 | |||
| 300.02 | 172.6 | 171.6 | 85.01 | 165 | 243 | 219.3 | 151.3 | 4 | 8 | 6 | BNUP2660172 | 1480 | 2690 | 995 | 1720 | 830 | 1180 | 68 | 2 | |
| 300.02 | 172.6 | 172.6 | 85.01 | 218.4 | 159.4 | 2.7 | 6.5 | 2×6 | BNTB2660172 | 1570 | 2910 | 1070 | 1880 | 790 | 1120 | 72.5 | 8 | |||
| 300.02 | 172.6 | 172.6 | 85.01 | 218.4 | 159.4 | 2.7 | 6.5 | 2×6 | BNTF2660172 | 1670 | 3230 | 1140 | 2050 | 820 | 1160 | 71.5 | 8.1 | |||
| 300.02 | 172.6 | 171.6 | 85.01 | 165 | 243 | 219.3 | 151.3 | 3 | 8 | 6 |
BNUP2660172 /2RZ |
1320 | 2100 | 940 | 1490 | 620 | 890 | 70 | 1 | |
| 300.02 | 172.6 | 171.6 | 85.01 | 165 | 243 | 219.3 | 151.3 | 3 | 8 | 6 | BNUP2660172 | 1320 | 2100 | 940 | 1490 | 620 | 890 | 70 | 2 | |
| 180 | 406.40 | 171.0 | 170 | 113.2 | 230 | 331 | 298.5 | 214.5 | 3 | 8 | 6 | BNUP3681171 | 1860 | 3120 | 1350 | 2210 | 890 | 1270 | 130 | 2 |
| 406.40 | 224 | 223 | 113.2 | 230 | 331 | 298.5 | 214.5 | 3 | 8 | 6 |
BNUP3681224 /2RZ |
2360 | 4250 | 1710 | 2990 | 1150 | 1620 | 170 | 1 | |
| 406.40 | 224 | 223 | 113.2 | 230 | 331 | 298.5 | 214.5 | 3 | 8 | 6 |
BNUP3681224 /BH1 |
2360 | 4250 | 1710 | 2990 | 1150 | 1620 | 170 | 2 | |
| 406.42 | 171 | 170 | 113.2 | 240 | 293.3 | 217.3 | 1 | 8 | 2×6 | BNTPA3681171 | 1760 | 3270 | 1250 | 2230 | 1070 | 1530 | 130 | 10 | ||
| 406.42 | 171 | 171 | 113.2 | 287.4 | 217.4 | 1 | 8 | 2×6 |
BNTB3681171 /IS |
1910 | 3640 | 1330 | 2400 | 1290 | 1840 | 130 | 8.2 | |||
| 406.42 | 171 | 171 | 113.2 | 293.4 | 217.4 | 1 | 8 | 2×6 |
BNTF3681217 /BH1 |
2020 | 3700 | 1330 | 2470 | 920 | 1310 | 130 | 8.3 | |||
| 406.42 | 217 | 217 | 113.2 | 293.4 | 217.4 | 1 | 8 | 2×6 | BNTB3681217 | 2440 | 4730 | 1720 | 3170 | 1490 | 2110 | 165 | 8 | |||
| 406.42 | 224 | 224 | 113.2 | 293.4 | 217.4 | 1 | 8 | 2×6 | BNTB3681224 | 2440 | 4730 | 1730 | 3200 | 1530 | 2170 | 170 | 8 | |||
| 406.42 | 224 | 224 | 113.2 | 293.4 | 217.4 | 1 | 8 | 2×6 |
BNTB3681224 /BH2 |
2440 | 4730 | 1730 | 3200 | 1530 | 2170 | 170 | 8 | |||
| 200 | 460 | 171 | 170 | 130 | 249 | 373 | 321.7 | 241.7 | 4 | 6 | 10 | BNTB4092171 | 1880 | 3340 | 1440 | 2530 | 1310 | 1860 | 166 | 2 |
| 460 | 241 | 240 | 130 | 249 | 373 | 321.7 | 241.7 | 4 | 6 | 10 | BNUP4092241 | 2660 | 5250 | 2010 | 3890 | 1790 | 2540 | 239 | 2 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| *潤滑油孔的數量 |
